Workstation Cranes and Monorails

What are Workstation Bridge Cranes and Monorails?

Bridge cranes cover rectangular work areas, while monoraiI systems can be used to move loads along a linear path, cover various work area shapes, or to link work areas together. Work station bridge cranes and monoraiIs can be used individually or can be readily adapted for more sophisticated applications by the addition of extra monorail tracks, curves, and transfers that can be easily configured into a total system.

Why Gorbel’s Workstation Cranes?

Gorbel® Work Station Cranes are a proven way to improve productivity, increase quality, and provide a safer work environment. Both the aluminum and steel Gorbel Workstation Crane Systems utilize enclosed track that is high in strength and low in weight.

With the ability to span up to 30 ft. and lift capacities between 150 and 4000 lbs., our line of ergonomic crane products guarantees increased productivity. Depending on your needs, Gorbel has the workstation cranes that are sure to handle any project.

Photos

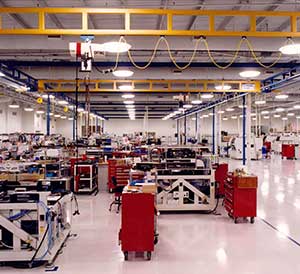

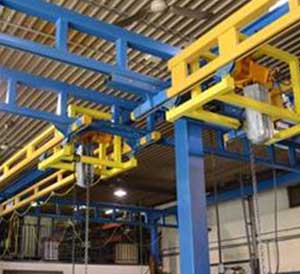

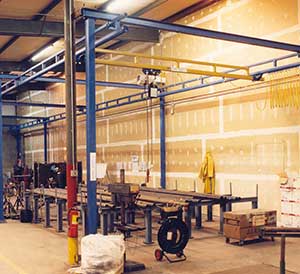

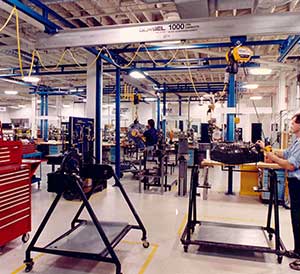

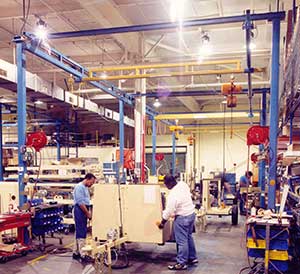

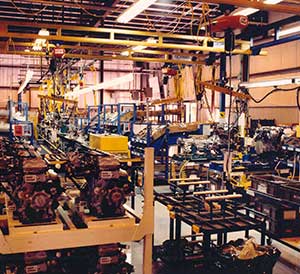

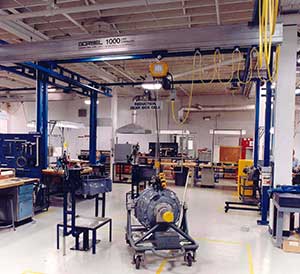

Free Standing Bridge Crane

Free Standing floor supported systems do not put stress on the building’s overhead structure. Installation is usually more straight forward, and these cranes are also easier to relocate in the future. Free Standing systems require a reinforced concrete floor of at least 6 inches.

  • Capacities from 150 to 4000 lbs
  • Rectangular Coverage with up to 34’ bridge and 124’ runway standard
  • Standard support distances of 20, 25, and 30 feet.
  • Easy to move and position loads
  • Modular design for greater flexibility
  • Doesn’t require existing support structure

Features & Benefits

  • Enclosed track / easy movement and long life
  • Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge
  • Ease of Installation / install on any standard 6″ concrete floor
  • Smooth rolling surface / Easier movement of bridge and trolleys
  • Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive

Photos

Free-Standing-Bridge-CraneFree-Standing-Bridge-CraneFree-Standing-Bridge-CraneFree-Standing-Bridge-Crane

Options

  • Aluminum or stainless steel
  • Aluminum or coped aluminum bridge
  • Cantilevered supports
  • Seismic Zone IV
  • Motorize
  • Galvanizing; custom paint

Applications

  • Applications with lighter loads (less than 4000 lbs.)
  • Parts Assembly
  • Machining
  • Palletizing loads
  • Injection Molding
  • Warehouse loading docks
  • Process Equipment Maintenance
  • Truck Service Centers

Case Studies

Accessories

  • Tool Trolley
  • Maintenance Gates
  • Tractor Drives for steel bridges
  • Interlock Transfers
  • Offset Load/Manipulator Platform
  • Nested Trolley

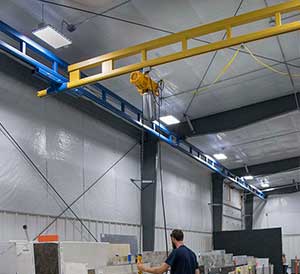

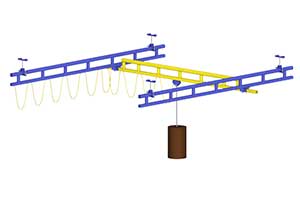

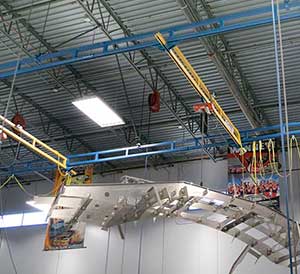

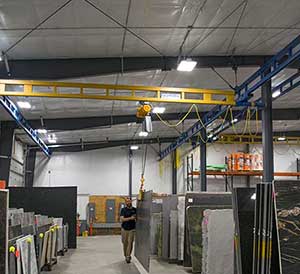

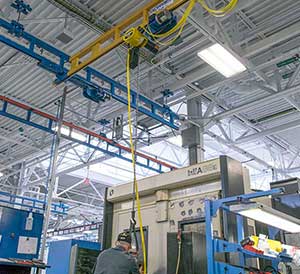

Ceiling Mounted Bridge Crane

With Ceiling Mounted Systems, supporting steel does not interfere with the handling operation. Ceiling Mounted Systems require a building with an adequate overhead structure to hang the crane.

  • Capacities from 150 to 4000 lbs
  • Rectangular Coverage with up to 34’ bridge and 124’ runway standard
  • Standard support distances of 20, 25, and 30 feet.

Features & Benefits

  • Enclosed track / easy movement and long life
  • Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge
  • No support structures so work areas are kept clear of obstruction
  • Ease of Installation
  • Smooth rolling surface / Easier movement of bridge and trolleys
  • Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive

Photos

Ceiling-Mounted-Bridge-CraneCeiling-Mounted-Bridge-CraneCeiling-Mounted-Bridge-CraneCeiling-Mounted-Bridge-Crane

Options

  • Aluminum or stainless steel
  • Aluminum or coped aluminum bridge
  • Cantilevered supports
  • Seismic Zone IV
  • Motorize
  • Galvanizing; custom paint

Applications

  • Applications with lighter loads (less than 4000 lbs.)
  • Parts Assembly
  • Machining
  • Palletizing loads
  • Injection Molding
  • Warehouse loading docks
  • Process Equipment Maintenance
  • Truck Service Centers

Case Studies

Accessories

  • Tool Trolley
  • Maintenance Gates
  • Tractor Drives for steel bridges
  • Interlock Transfers
  • Offset Load/Manipulator Platform
  • Nested Trolley

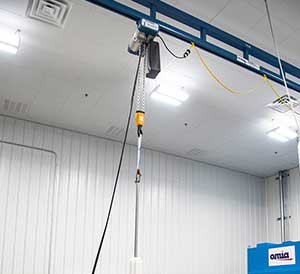

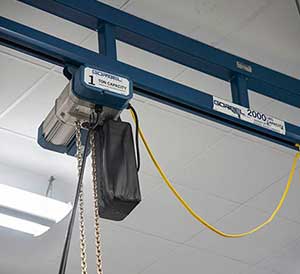

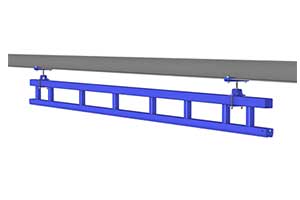

Monorails

  • Capacities from 150 to 4000 lbs
  • Linear movement
  • Modular designs provide ultimate flexibility
  • Can be integrated into a total system with extra track, curves, interlocks and switches

Features & Benefits

  • Steel or Aluminum track
  • Free Standing options available contact customer service
  • Enclosed track / easy movement and long life
  • Ease of Installation

Photos

MonorailMonorail

Options

  • Aluminum
  • Galvanizing; custom paint colors

Applications

  • Designed for applications with lighter loads (less than 4000 lbs.)
  • Parts Assembly
  • Machining
  • Palletizing loads
  • Injection Molding
  • Warehouse loading docks
  • Process Equipment Maintenance
  • Truck Service Centers

Accessories

  • Switches
  • Interlocks / Transfers
  • Curves
