R&M Electric Chain Hoists

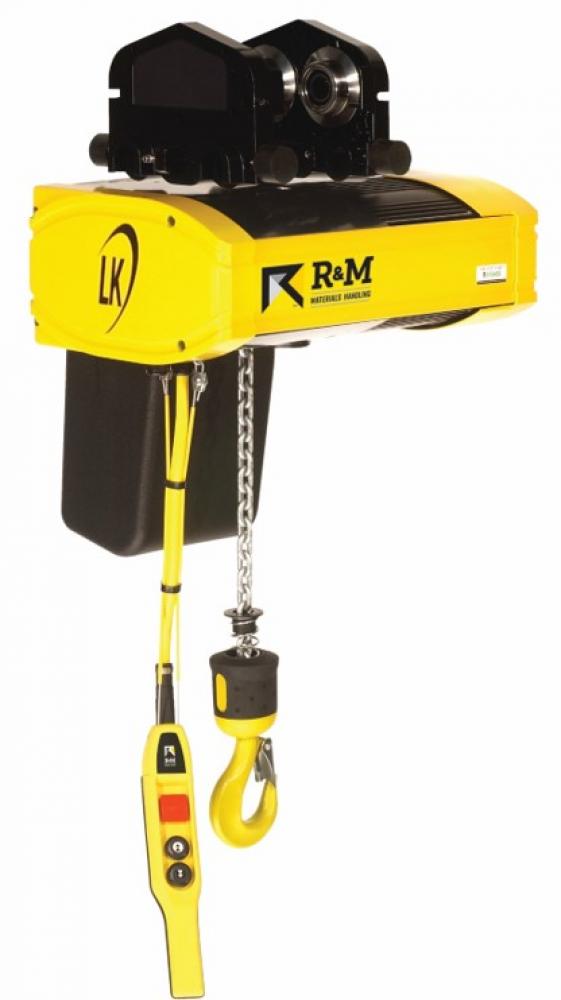

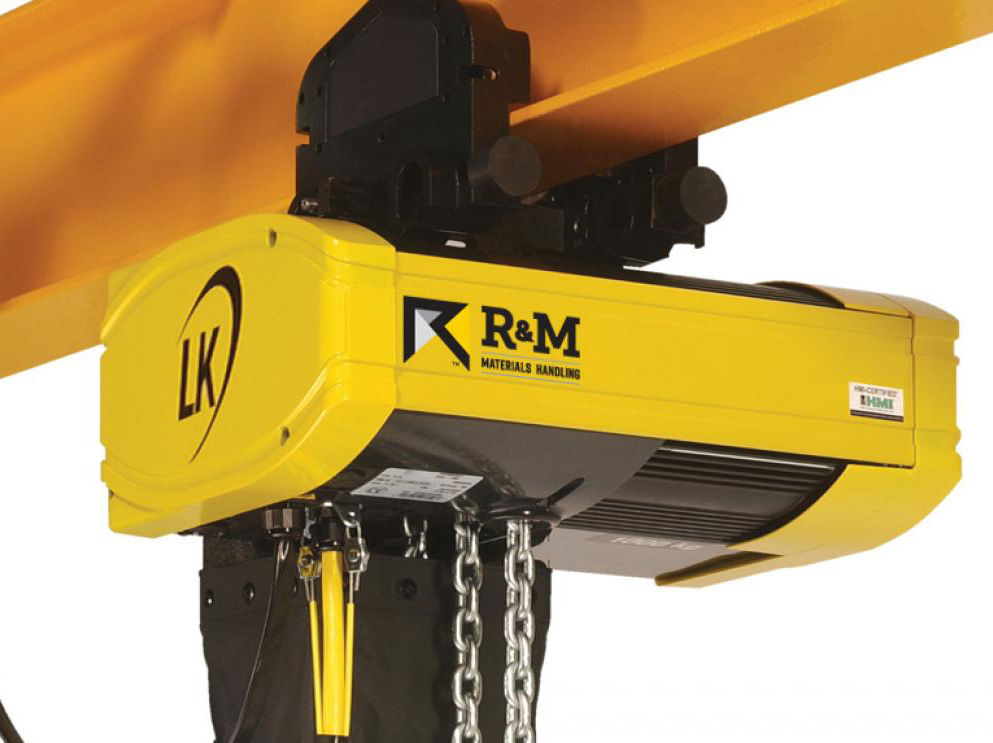

LK Electric Chain Hoist

The LK electric chain hoist is leading the industry with its sleek yet rugged design, quiet operation, and easy to service layout.

Our innovative LK electric chain hoist is offered in capacities from 1/8 – 5 ton (125 -5000 kg). With the drive train originally designed to meet the noise and size specifications of the entertainment market, you will not find a quieter or more compact design in the industry. The LK electric chain hoist comes standard with all the features you need to get up and running today.

Standard Features

  • 1/8 – 5 ton (125 – 5000 kg) capacities
  • Single and two-fall models
  • 10, 15 and 20 foot (3, 4.5 and 6 m) standard lift heights
    • Additional lifting heights available up to 98 feet
  • Single or two-speed hoisting options
  • Inverter or two-speed controlled trolley options
  • Top hook, lug mount, push trolley, and motorized trolley suspensions
  • High-density polyethylene black chain container

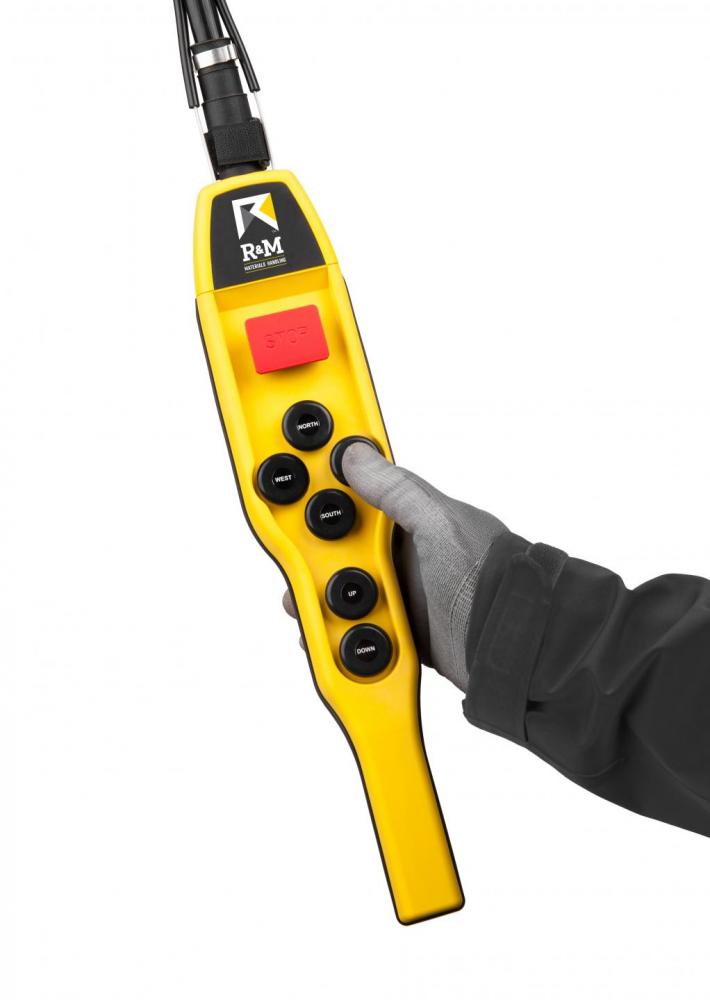

  • PRQ pendant with an ergonomic pistol grip
  • NEMA type 3R (IP55) protection classification
  • CSA c/US approval
    • 60 Hz, 115 VAC models only

Why choose the LK?

Our LK electric chain hoists are built to last. Every detail of this hoist was designed with the customer in mind, from our ergonomic pushbutton control grip to our best-in-class design. The LK electric chain hoist is engineered to help you rise above and keep your facility running at its best.

Less Maintenance

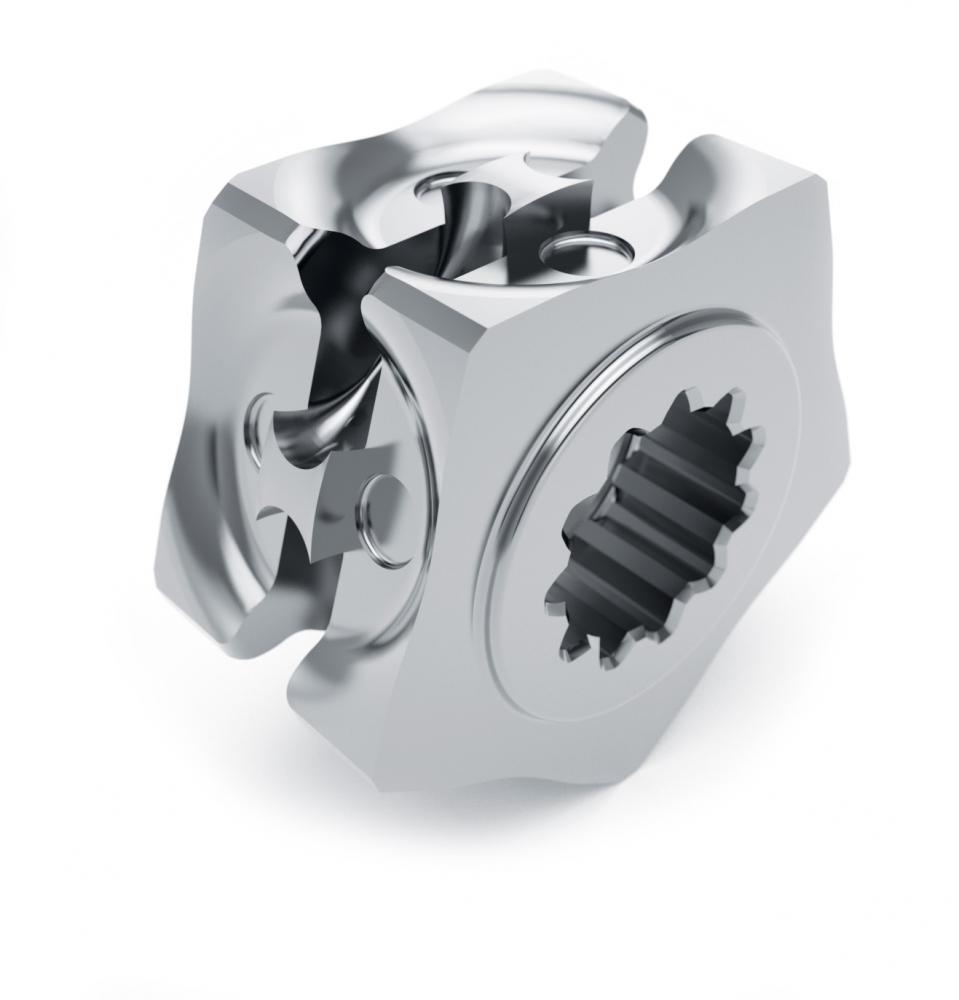

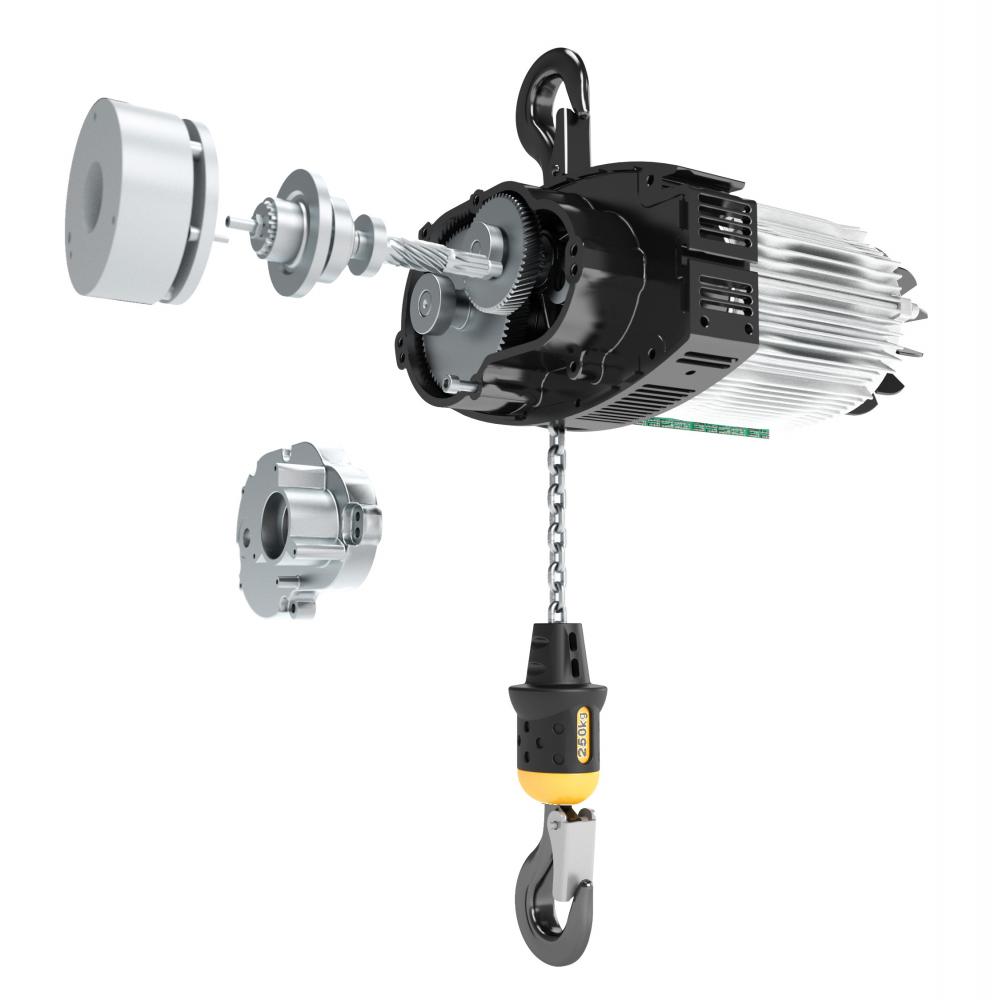

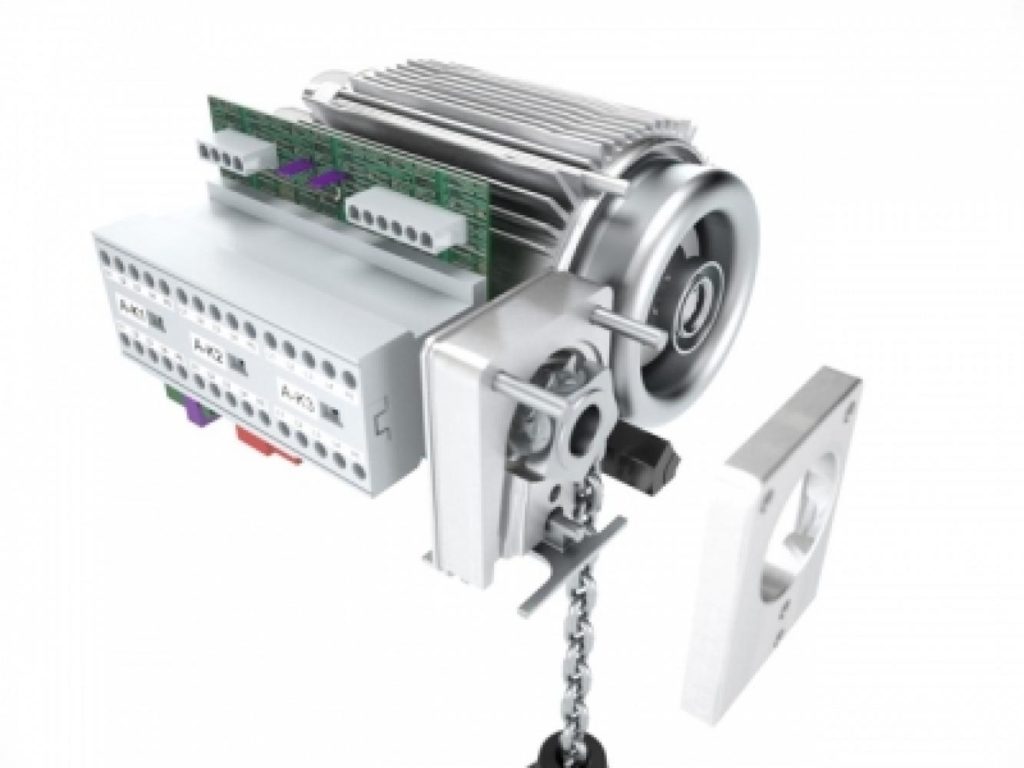

Many of the key drivetrain components of the LK electric chain hoist have been designed to last for the designed working period of the hoist, such as the hoist motor, motor brake and gearbox. The hoist brake is self-adjusting, so air gap adjustments are not required, and the hoist gearbox is permanently lubricated. When maintenance is required, the LK hoist is designed for ease of maintenance. The chain guide and sprocket are easily accessed from the outside of the hoist, and the electrical components are all plug-and-play connections for quick inspections and replacements.

Rugged Design

Electric chain hoists need to be tough to stand up to industrial use. The LK chain hoist features an all pressure case aluminum body, which protects the electrical parts inside the hoist. The plug-and-play connection and rocker-style electrical limits are all housed inside the hoist body for improved protection, and cable gland entries are tested for maximum use to hold up to 400 pounds.  Additionally, R&M’s LK hoisting gearbox meets a minimum AGMA 10 rating to bring you the best precision and durability available in the industry.

Safety

Safety is critical in any industrial operation. Our LK hoists are factory load tested at 125% the rated capacity and feature an innovative slip clutch overload device with the overload factory set at 110% the rated capacity. The slip clutch is easily accessible from the end of the hoist body. The rocker style upper and lower hoisting limits also keep you safe and protect the equipment by preventing overtravel of the hook and chain. The LK hoist comes with maintenance and safety information created specifically for your equipment. No more guessing whether you are following the correct guidelines!


Gallery



Electric Chain Hoist Video Overview

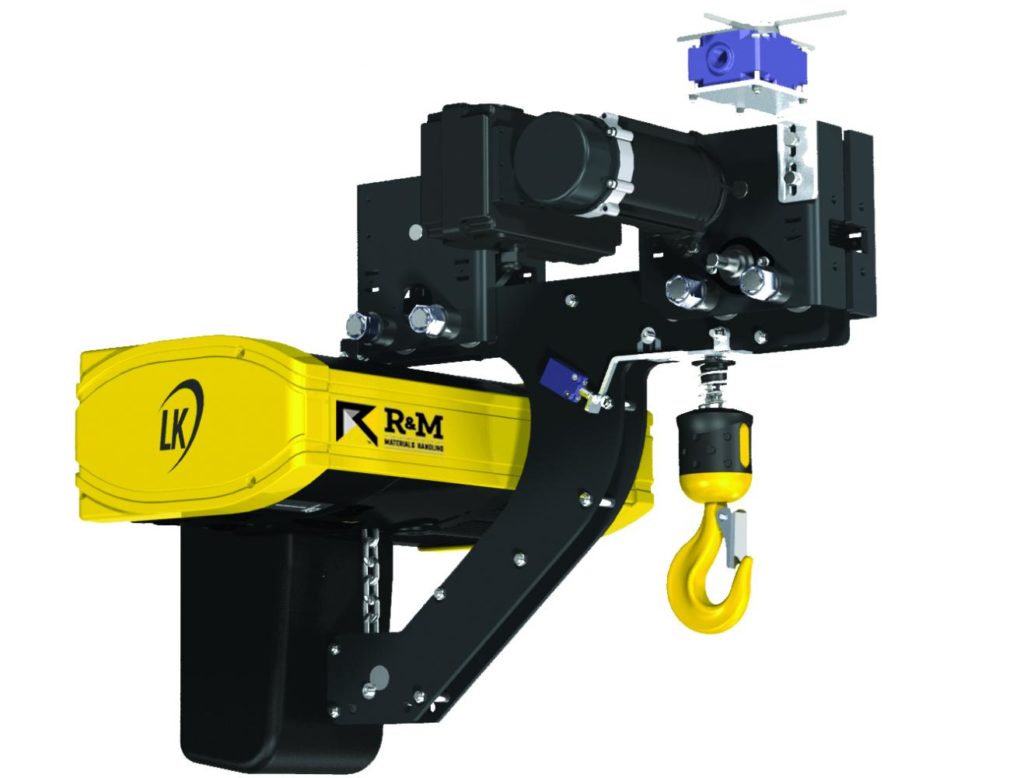

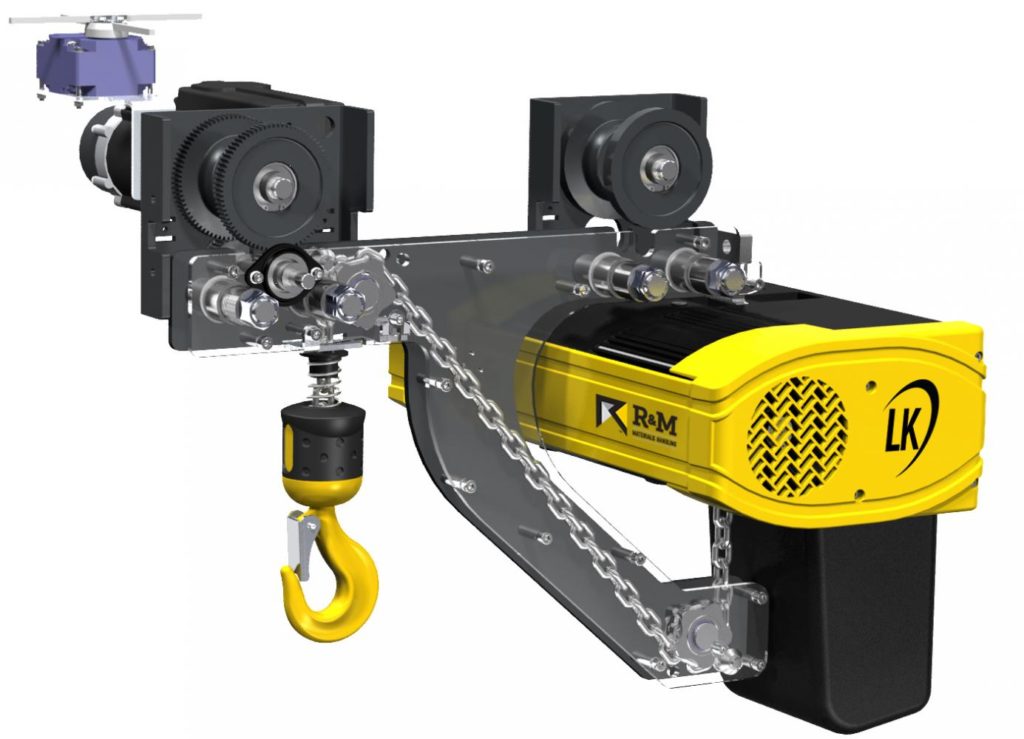

Low Headroom LK Electric Chain Hoist

Low Headroom LK Electric Chain Hoist

The low headroom LK electric chain hoist is the ideal solution to meet your toughest clearance requirements for special applications.

Do you need to get every inch you can from your lifting height? You can get all the great features of the LK electric chain hoist while maximizing your hook height. Using special trolley frame with upper sheave and offset hoist machinery, the low headroom LK electric chain hoist moves the hook away from the hoist body to allow for maximum hook height in tight clearance applications.

Standard Features

  • 1/8 – 5 ton (125 – 5000 kg) capacities
  • Lifting heights up to 98 feet
  • Single or two-speed hoisting options
  • Inverter or two-speed controlled trolley options
  • Special low headroom design
  • High-density polyethylene black chain container
  • PRQ pendant with an ergonomic pistol grip
  • NEMA type 3R (IP55) protection classification
  • CSA c/US approval
    • 60 Hz, 115 VAC models only

HMI Certified
The LK electric chain hoist line is HMI-CertifiedSM! The purpose of the HMI-Certified License program is to instill buyer and user confidence in the product by assuring it meets one or more recognized industry standards and the licensee is committed to safety, service and aftermarket support. The product is also verified, signed and sealed that it meets the requirements of said Standards(s) by a qualified US registered Professional Engineer.

HMI-Certified is a registered asset of the Hoist Manufacturers Institute (HMI®).

Downloads

LK Electric Chain Hoist Brochure
R&M Product Line Card Brochure


Gallery

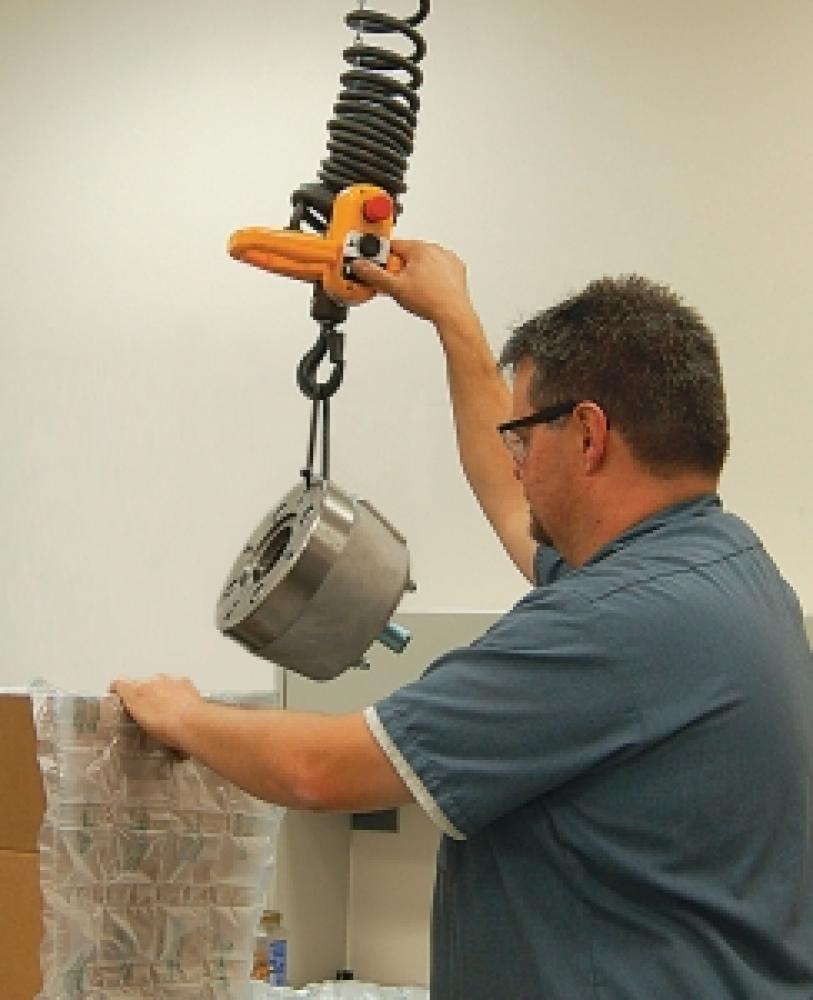

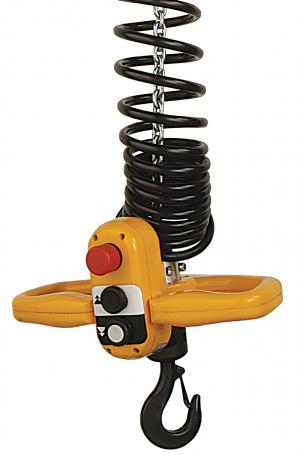

Digichain™ Ergonomic Controls

Digichain™ ergonomic controls are designed for one-handed operation, allowing LK electric chain hoists to be used as an extension of the operator’s arm.

Ergonomic Controls for Industry-Leading Comfort

Your employees are your best asset – help them to work in comfort! Digichain™ ergonomic controls improve throughput while increasing employee comfort. These ergonomic controls are designed with a unique controller integrated into the LK electric chain hoist’s bottom hook block, allowing operators to use the hoist as if operating the equipment with their own hands.

Standard Features

  • Available on LK02 and LK05 model hoists
  • 1/8 – 1/2 ton (125 – 500 kg) capacities
  • Single-fall only
  • Standard E-stop button
  • NEMA type 3R (IP-55) protection rating

Downloads

LK Electric Chain Hoist Brochure
R&M Product Line Card Brochure


Gallery
